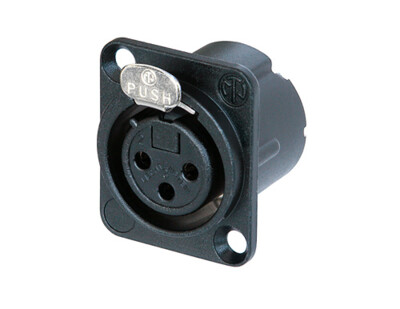

3 pole female receptacle, solder cups, black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik’s EMC XLR cable connector.
Features & Benefits
All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions
| Aantal pinnen | 3 |
|---|---|
| Chassis shape | D |
| Gender | Female |
| Kleur | Zwart |
