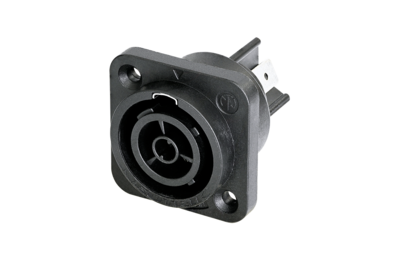

Neutrik – NAC3FPX-TOP -TRUE1

Appliance outlet connector, 1/4″ flat tab terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
Heavy duty sealed power connector for harsh and demanding environment
IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
Uses high impact UV-resistant materials
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
Unique Neutrik cable retention
ENEC certified according to IEC 60320
UL498 certified
