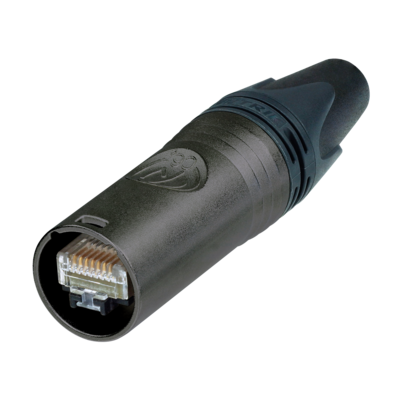

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating
The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 – AWG22/1 (solid) or AWG24/7 – AWG22/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is ≤ 1.1 mm please refer to NE8MX-B-T.
Features & Benefits
Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
PoE++ compliant according to 802.3bt Type4
IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Unique Neutrik chuck-type strain relief
| Aantal pinnen | 8 |
|---|---|
| Gender | Male |
| Kabelinvoer Ø | 7.0 – 9.5mm |
| Kleur | Zwart |
| Power over Ethernet | "PoE+ acc. IEEE 802.3at" |
| kenmerk | CAT6A TIA/EIA & IEC/ISO/EN normering |
| Protection class | IP65 (stof- en spatwater bestendig) |
