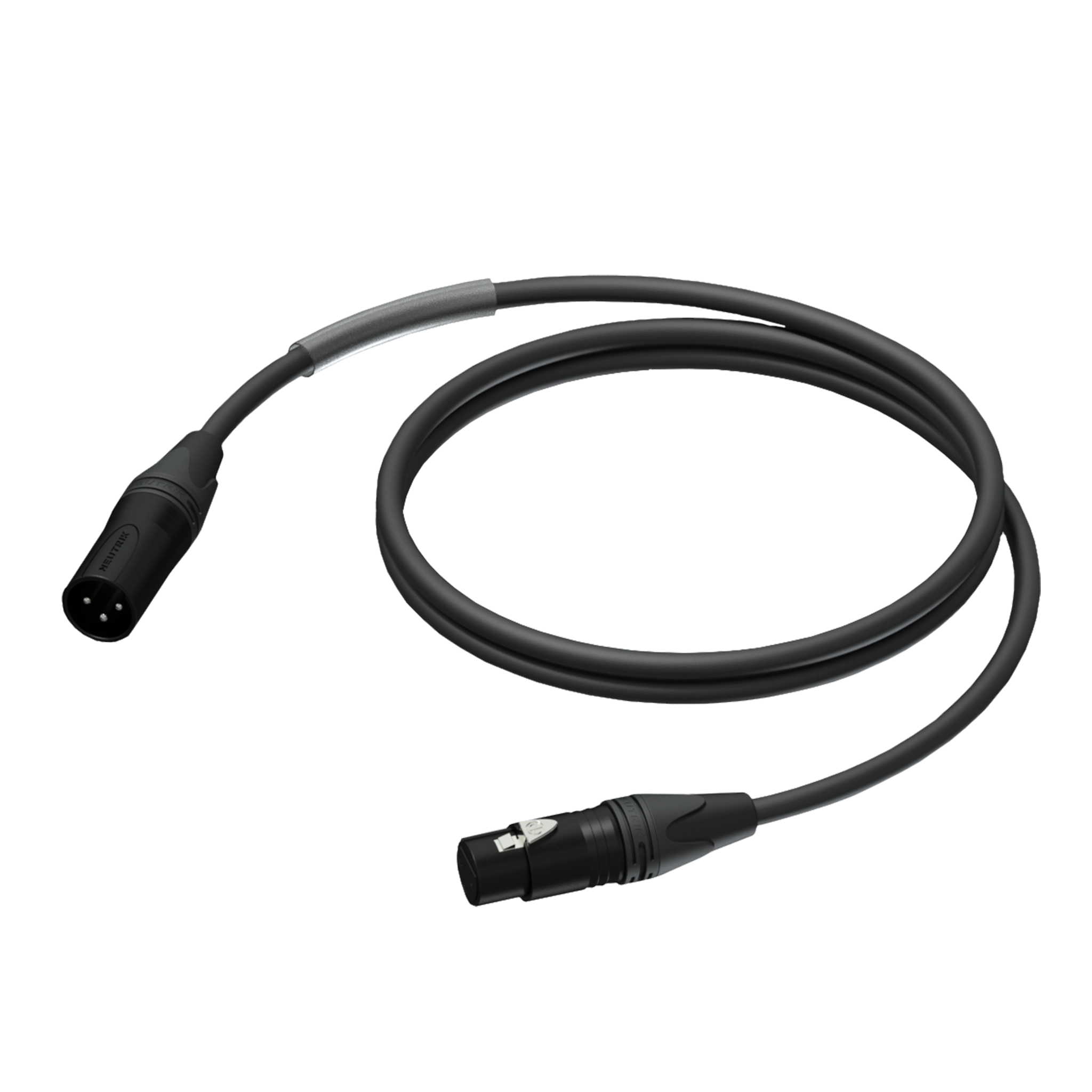

The PRD953 is a 110 Ohm DMX-AES/ EBU cable constructed using the PMX222 cable and fitted with Neutrik 3-pin XLR connectors. The 22 AWG (0.34 mm²) tinned copper braiding with a double (Al-foil + TC braiding) shielding makes it perfectly suited for professional use in highly demanding applications. The stranded conductors and smooth flexing outer jacket provide a great flexibility with a solid feel. The dark grey outer jacket and the attached shrink sleeve allow to distinguish 110 Ohm cables from others while custom labeling is possible for easy identification. It comes in different lengths from 0.5 meters to 20 meters, providing solutions for all applications.
22 AWG stranded conductors
Highflex™ solid & flexible jacket
6.5 mm (Ø) outer diameter
Oxygen free copper
60 mm transparent shrink sleeve
Silver contacts, black metal XLR housing
| Connector A | 1x XLR male 3 polig |
|---|---|
| Connector B | 1x XLR female 3 polig |
| Aantal pinnen | 3 |
| Lengte | 0.5 meter, 1 meter, 1,5 meter, 3 meter, 5 meter, 10 meter, 15 meter, 20 meter |
